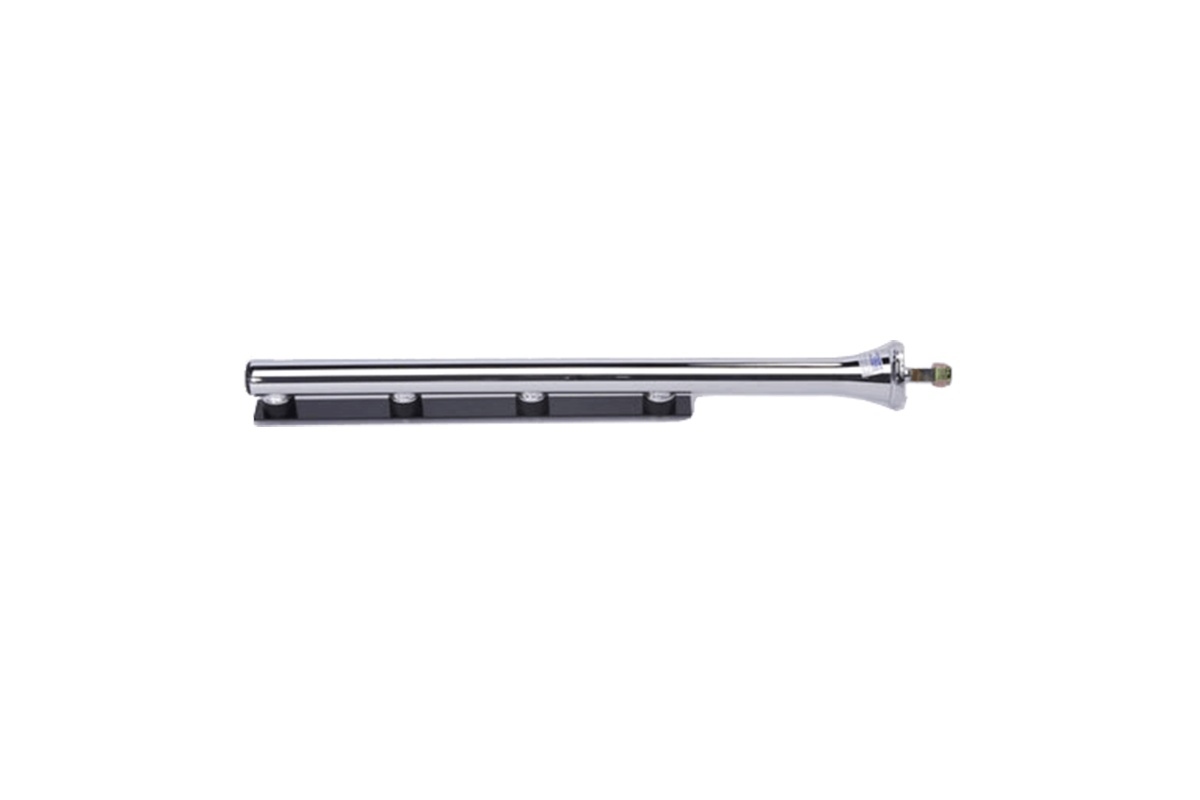

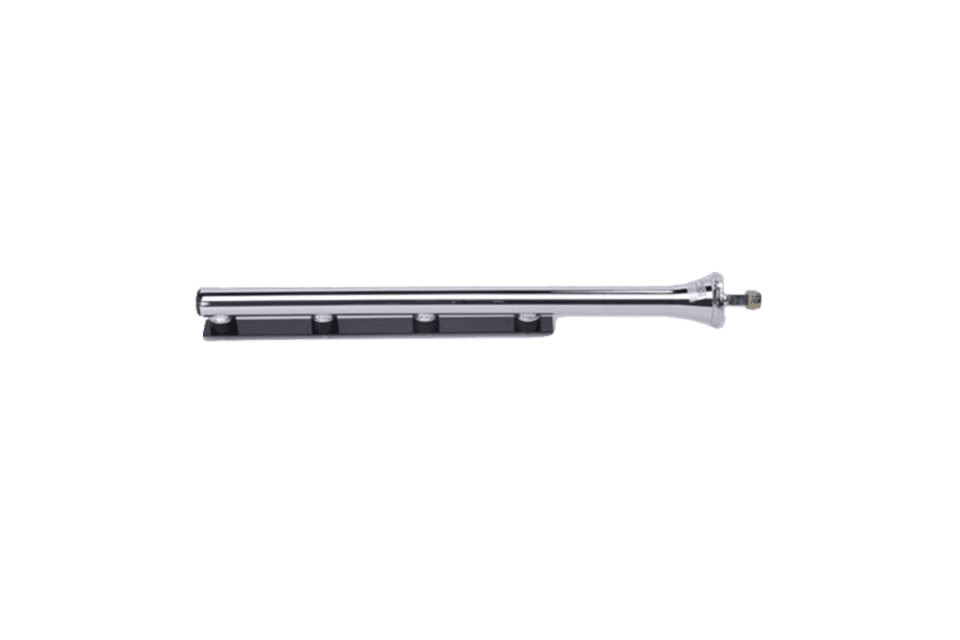

Straight Bracket
- Mounts solidly to frame with single grade 8 bolt
- Bracket Mounts 1″ off Fender so rocks and gravel can pass through
Installation Notes:
- Backing plate is designed to be used as a template to drill holes in fender.
- When installing the 3/8″ x 2 1/4″ bolts, it is recommended that the bolts are not over tightened, 10inch lbs. torque.
- It is necessary to bend TAB Lock-washers downward into the bolt to prevent unwinding.
- Torque 5/8 Nyloc nuts to 150ft/lbs.
Product Variations Filter
Product Variations
| Dimensions | Material | ||
|---|---|---|---|
 |

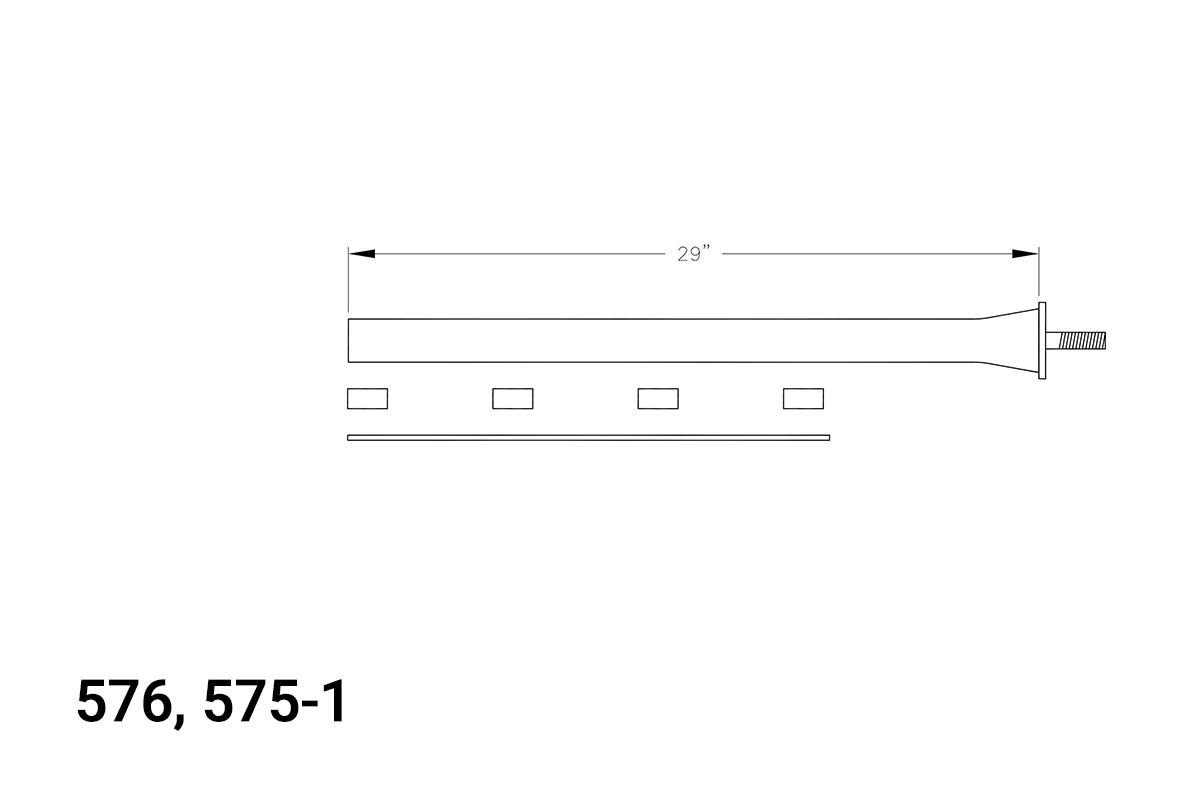

.01 (H) × 4 (D) × 29 (L) in | Black Powder Coat |
|
 |
.01 (H) × 4 (D) × 29 (L) in | Chrome |
|
There is no products matching your filter selection. Try another combination or contact us.
Showing 2 of 2 items
