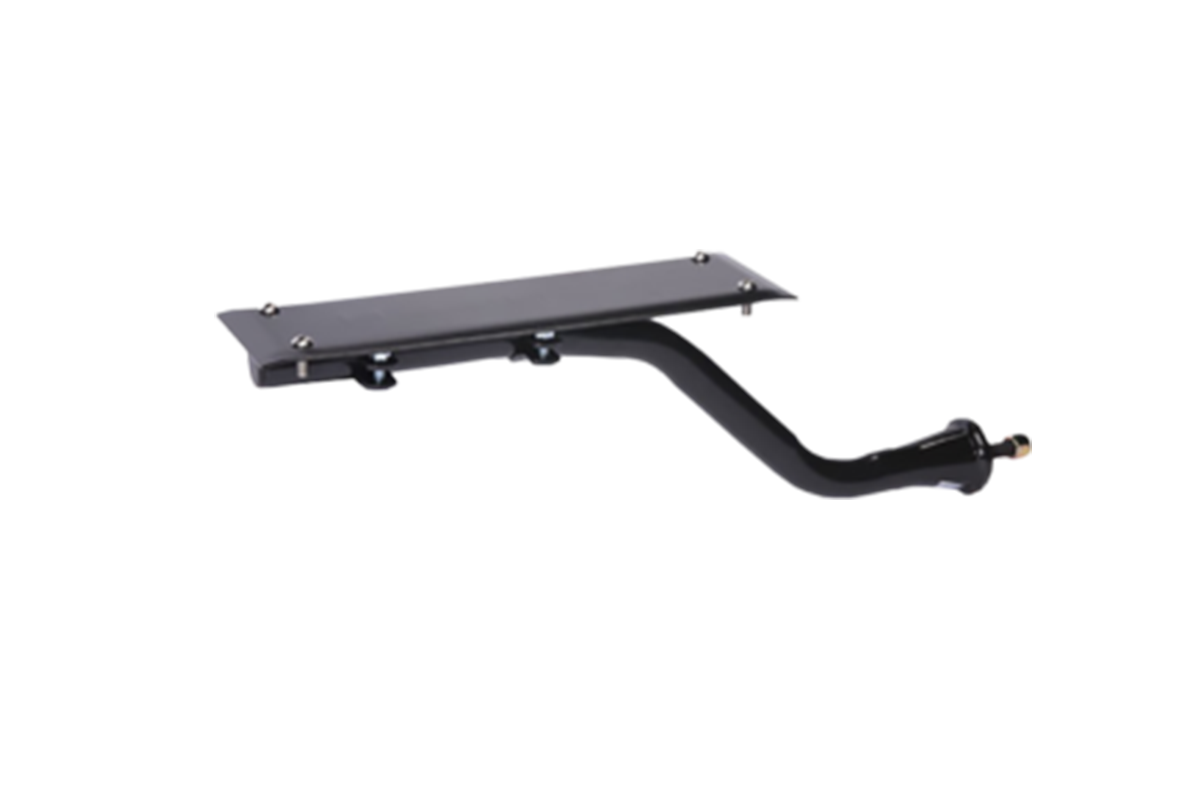

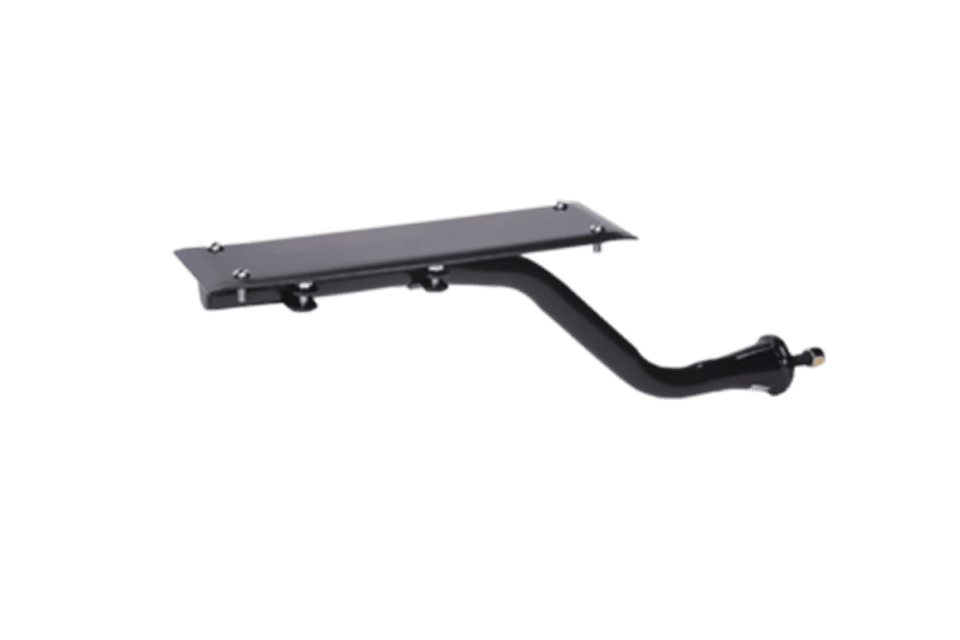

EZ-Mount Adjustable Fender Bracket
- All three EZ-Mount fender brackets are adjustable in length from 27″ to 30″.
- Stainless steel cap screw mounting plate bolts are included.
- Black powder-coated steel.
- Download our catalog for complete info.
Product Variations Filter
Product Variations
| Dimensions | Size | ||
|---|---|---|---|

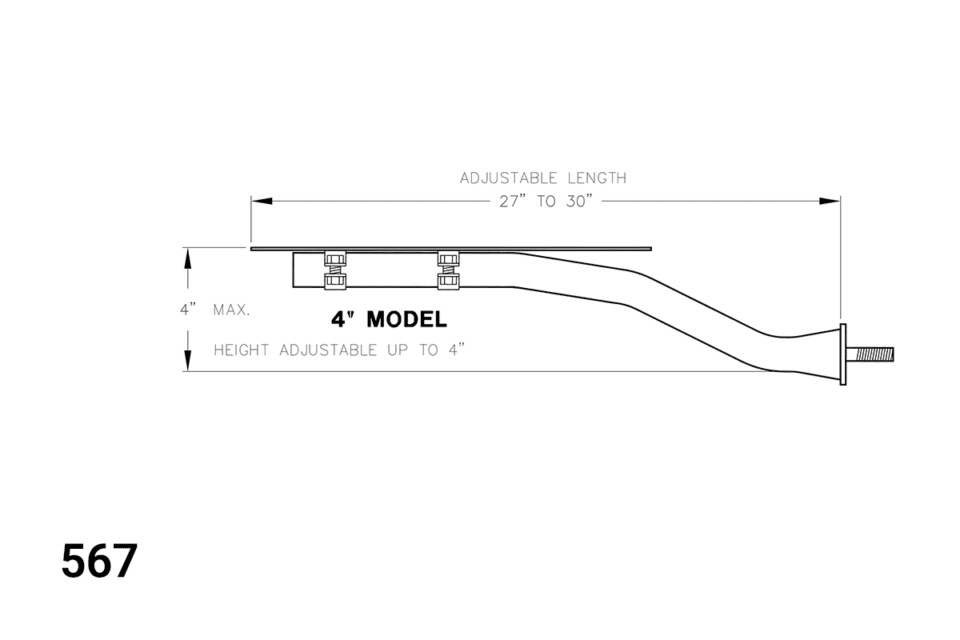

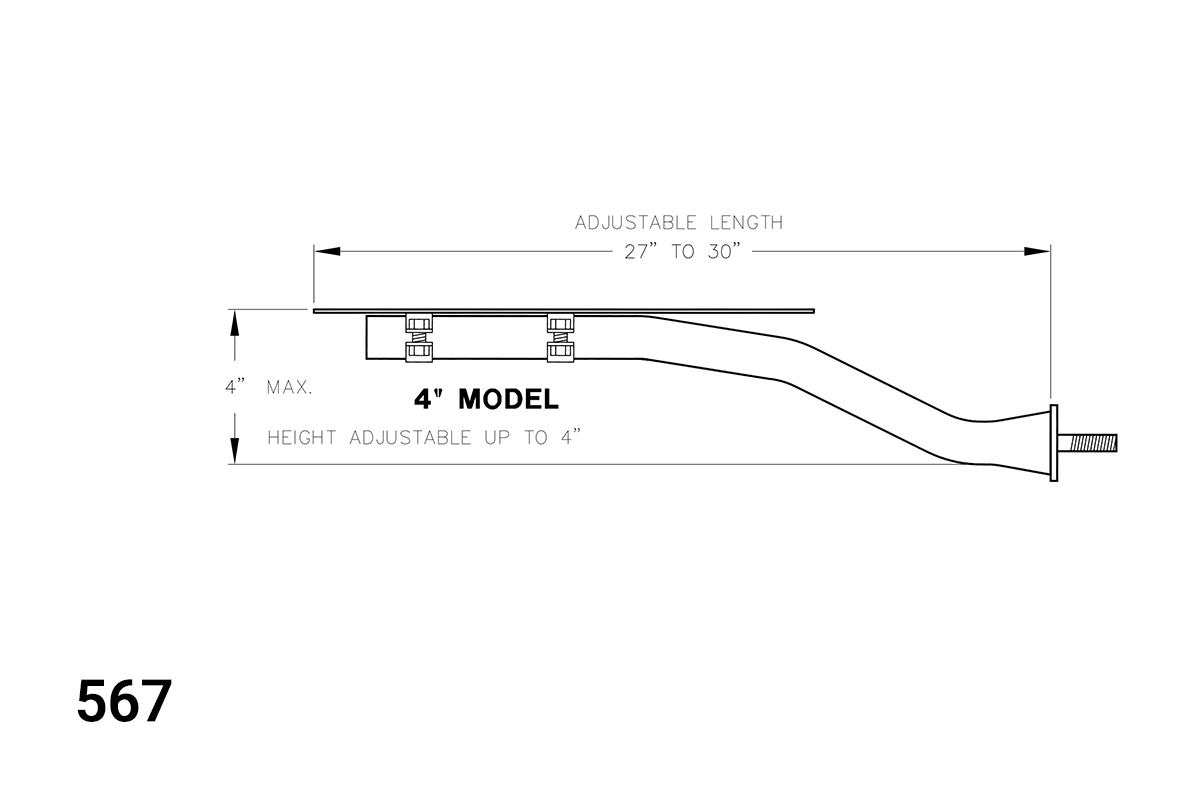

 Under Fender Mount, Black Steel, Adjustable Length 27″ to 30″, 4″ Adjustable Height
SKU: 567
Show more
|
6 (H) × 4 (D) × 32 (L) in | 4" |
|
|

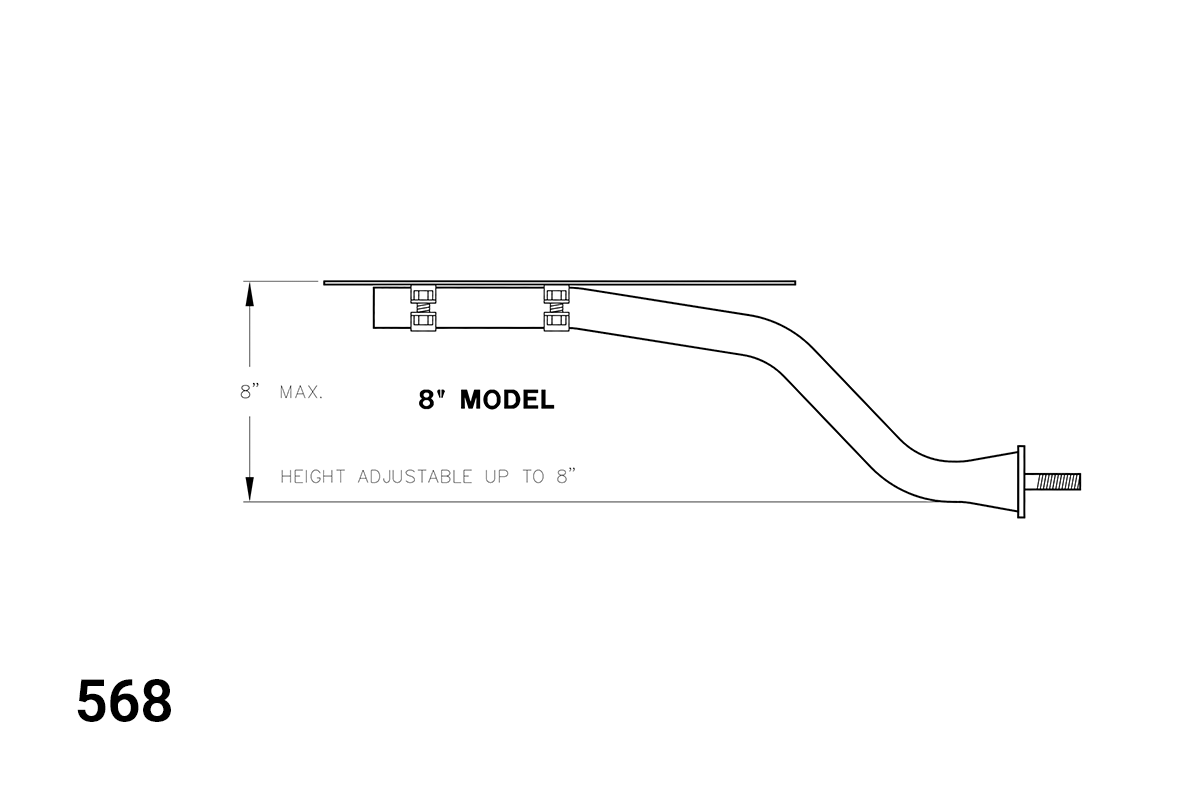

Under Fender Mount, Black Steel, Adjustable Length 27″ to 30″, 8″ Adjustable Height
SKU: 568
Show more
|
6 (H) × 4 (D) × 32 (L) in | 8" |
|
|

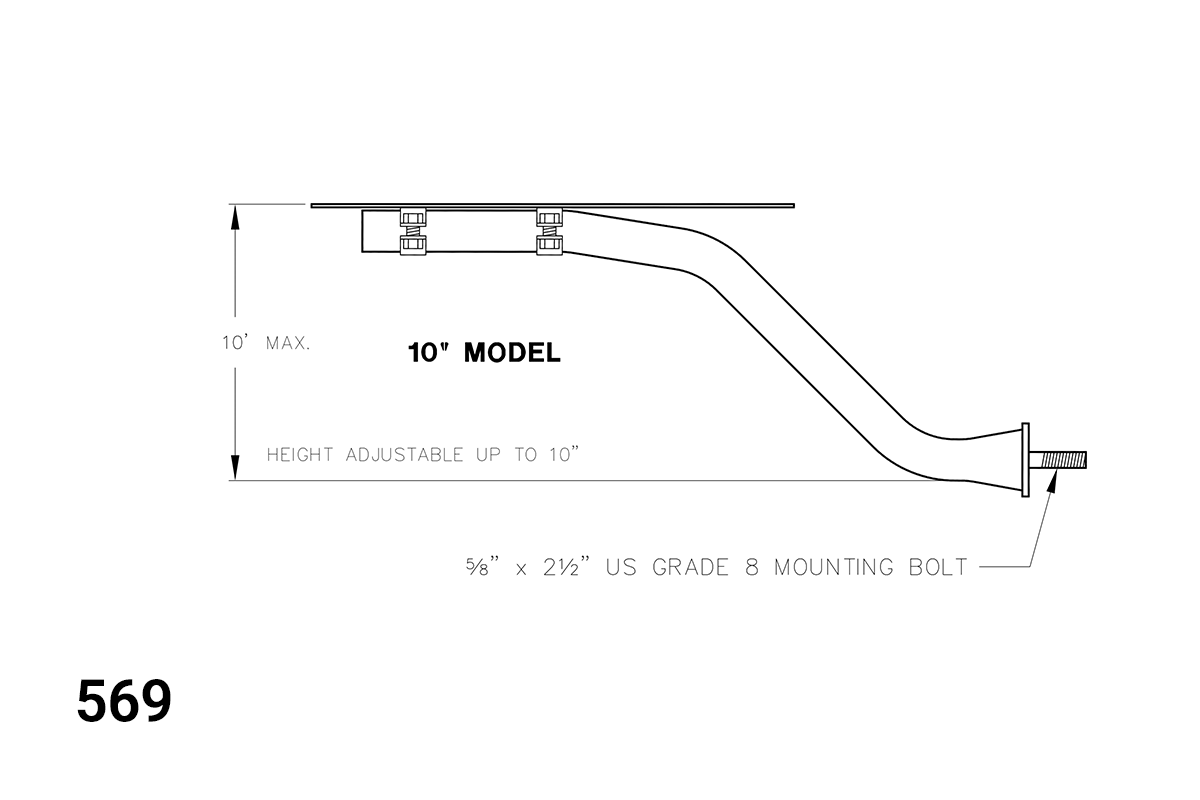

Under Fender Mount, Black Steel, Adjustable Length 27″ to 30″, 10″ Adjustable Height
SKU: 569
Show more
|
6 (H) × 4 (D) × 32 (L) in | 10" |
|
Showing 3 of 3 items
Installation Notes:
- Backing plate is designed to be used as a template to drill holes in fender.
- When installing the 3/8″ x 2 1/4″ bolts, it is recommended that the bolts are not over tightened, 10inch lbs. torque.
- It is necessary to bend TAB Lock-washers downward into the bolt to prevent unwinding.
- Torque 5/8 Nyloc nuts to 150ft/lbs.
Merritt’s fender bracket provides a secure and adjustable mounting solution designed to withstand the challenges of heavy-duty trucking environments. The EZ Mount Adjustable fender bracket simplifies the installation process, ensuring you can easily adapt it to fit the specific requirements of your rig. Built with durable materials, this bracket resists corrosion and wear over time, keeping your fenders properly aligned and protected from everyday road and weather conditions.
What sets Merritt’s fender bracket apart is the thoughtful engineering behind its adjustable design. This feature allows for quick adjustments without the need for extensive modifications, making it easier to achieve a perfect fit even when dealing with different frame sizes or aftermarket components. By maintaining the correct clearance and positioning, the fender bracket helps safeguard both your tires and your fenders, reducing the risk of costly damage.
Whether you’re looking to replace a worn-out part or upgrade to a more versatile option, the EZ Mount Adjustable fender bracket offers a practical blend of reliability and convenience. Designed for professional drivers and fleet managers alike, it helps streamline maintenance and ensures your fenders remain securely in place during long hauls. With Merritt’s reputation for quality craftsmanship, you can trust this fender bracket to stand up to the demands of the road and extend the life of your equipment.
